€1,299.00*
On order - delivery time on request (usually approx. 14 days)**

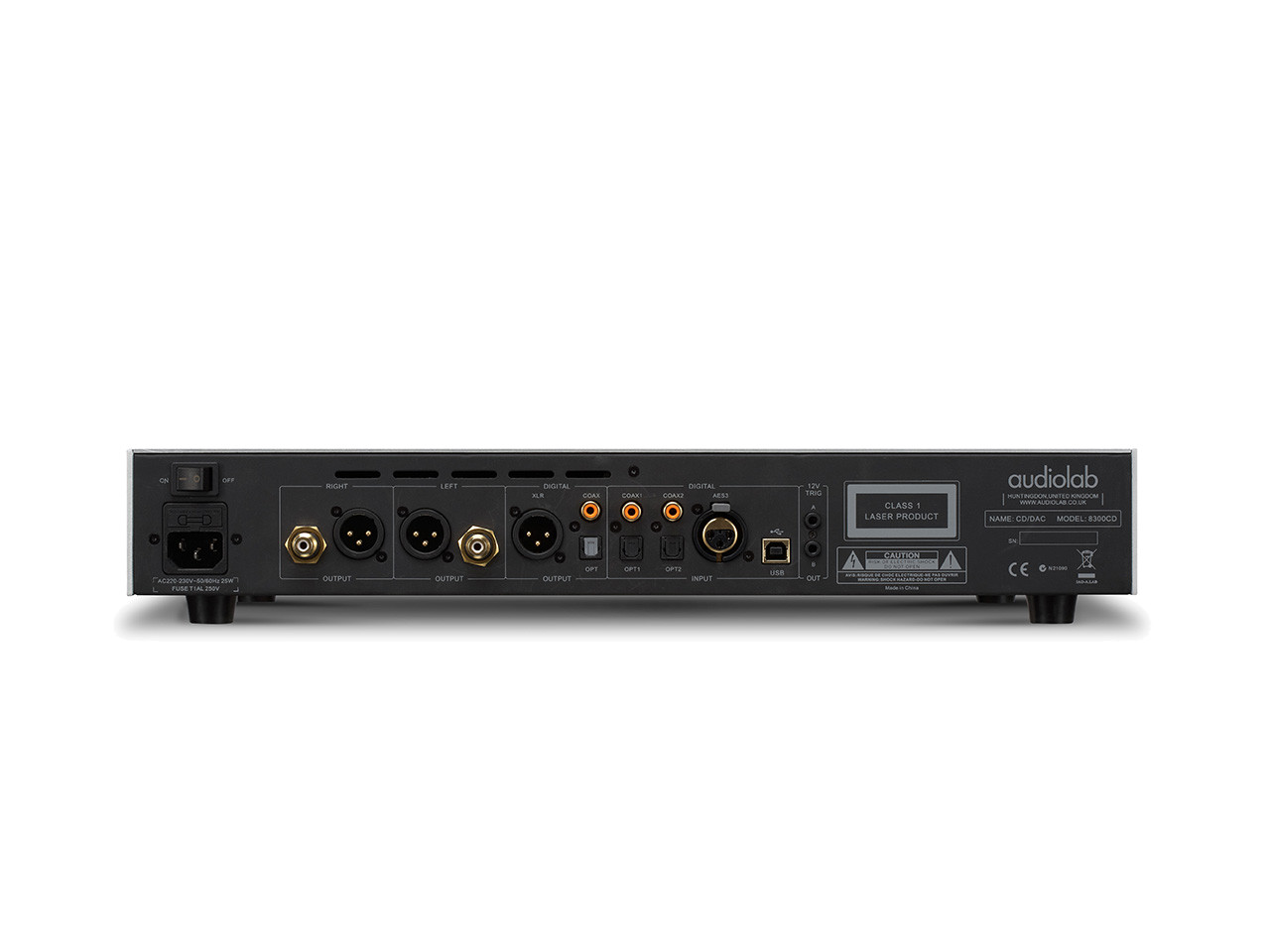

Product information "Audiolab 8300 CD Silber"
The 8300CD demonstrates a level of fine detail, transparency, soundstage depth, dynamic range and musical flow across all sources. It is both an exceptional CD player and a top-class external DAC/digital preamp, able to make the most of your CD collection. While delivering an enormous sonic boost to external digital audio sources it now extends its resolution to 32-bit/384kHz and DSD compatibility via USB.
Technische Daten:
General Description | CD Player, Digital-to-Analogue Converter |
Finish | Fine Textured Aluminium (Black / Silver) |
Display | POLED 128x64 pixels 2.7" |
Standby Feature | Yes |
12V Trigger | Yes |
CD Mechanism | Slot-Loading |
DSD Compatible | Yes (DSD64 / DSD128 / DSD256) |
Disc Compatibility | CD/CDR |
DAC | ESS Sabre32 9018 chip |
Resolution | 32 bits |
Sampling Frequency | Optical,Coaxial, AES: 32kHz - 192kHz USB:32kHz - 384kHz(PCM) / DSD64, DSD128, DSD256 |
Maximum Sampling Frequency | Optical,Coaxial, AES: 192kHz USB: 384kHz (PCM) / 11.2M (DSD256) |
Digital Input | 2 x Coaxial, 2 x Toslink Optical, 1xAES/EBU, 1 x USB for PC USB, |
Digital Output | 1 x Coaxial, 1 x Toslink Optical,1 x AES |
Output Voltage | 4.2Vrms ±0.1 (Balanced) 2.1Vrms ±0.1 (Unbalanced) |
Output Impedance | 10O |
THD (1kHz 0dB 20Hz - 20kHz A wtd. | <0.002% |
Frequency Response +/-0.2dB | 20Hz - 20KHz (± 0.2dB) |
Signal-to-Noise Ratio (S/N) A wtd | RCA:<-98dB ,XLR<-100dB |
Dynamic Range (A wtd.) | RCA:>98dB ,XLR>100dB |
Crosstalk @1K | RCA:<-120dB , XLR <-130dB |
Gain Error | <0.5W |
Dimensions (H x W x D) | 80 x 444 x 317mm |
Weight | 6kg |
