Products of Music Hall
Music Hall Ikura weiss
€1,299.00*
Der Music Hall ikura ist ein 2-Gang-Plattenspieler mit Riemenantrieb und vielen einzigartigen Funktionen. Beginnend mit dem für Music Hall typischen zweiteiligen Split-Sockel-Design. Die Sockel sind isoliert und durch drei vulkanisierte Gummikegel getrennt.
Auf dem unteren Sockel sind drei verstellbare konische Füße, ein 2-Gang-Gleichstrom-Synchronmotor, Netzschalter, Verkabelung und elektrische Teile montiert. Die klanggebenden Komponenten 13 Hauptlager, Arm und Tonabnehmer 13 sind auf dem oberen Sockel montiert.
Features
Einzigartiges Split-Sockel-Design von Music Hall
einteiliger Tonarm der Spitzenklasse
flexibler interner Tonarmdraht aus hochreinem Kupfer
Der Schwerpunkt des Gegengewichts befindet sich auf gleicher Höhe mit der Tasterspitze
resonanzdämpfendes Gegengewicht ist vom Tonarm entkoppelt
getrennt isolierter DC-Synchronmotor
Riemenscheibe mit zwei Geschwindigkeiten (33/45 U/min)
Ortofon 2M blue Moving-Magnet-Tonabnehmer
Präzisions-Hauptlager aus Edelstahl mit Teflonummantelung
Hauptlager sorgt für geräuschlosen und flüssigen Betrieb
dynamisch ausbalancierte MDF-Platte
weiche Filzmatte
hochwertige Gold-Cinch-Anschlüsse und abnehmbares Phono-Kabel
spezielle vibrationsdämpfende Stellfüße
geräuscharmes Design mit vollständig manuellem Riemenantrieb
ausgezeichnete Bedienungsanleitung und einfache Montage
Staubschutzhülle und 45rpm-Adapter
nicht kompatibel mit Music Hall cruise control
Technische Daten
Stromversorgung
115V/60Hz oder 230V/50Hz
Leistungsaufnahme
2VA
Motor
DC Synchron
Drehzahl
33 U/min (manuelle Änderung bis 45 U/min)
Drehzahlabweichung
± 0,9%
wow and flutter
±0,15%
rumble max
> -70 db
Befestigungsabstand Armbasis
212mm
Tonarmrohrmaterial
Aluminium
effektive Tonarmlänge
9 Zoll (228,6 mm)
effektive Tonarmmasse
11g
Überhang
0,7 Zoll (18 mm)
Patronengewichte
2,0 13 16,0 g
Tonarmgewicht ohne Gegengewicht
250g
Plattendurchmesser
11,81 Zoll (30cm)
Plattengewicht
2 lbs (0,90 kg)
Produktabmessungen
33,7 cm x 46,4 cm x 14 cm
Gewicht
9 kg
%
Music Hall a35.2 Silver
€599.00*
€999.00*
(40.04% saved)
Der a35.2 ist ein großer, leistungsstark klingender integrierter Verstärker, der perfekt in den modernen Haushalt passt. Wir richten uns in erster Linie an Musikliebhaber mit einem Zweikanal-Audiosystem und haben einen direkten AV-Eingang (Heimkino-Bypass) für diejenigen, die den Verstärkerbereich des a35.2 verwenden möchten, um die Frontkanäle in einem Heimkino-Set mit Strom zu versorgen, oben.Der a35.2 wurde aus den feinsten Teilen gefertigt und von Hand zusammengebaut. Es sind die Herzverstärker, um die ein großartiges Soundsystem aufgebaut werden kann, und sie sind die perfekte Ergänzung zu unserem CD-Player CD35.2.
Features
85 Watt / Kanal Stereo-Verstärker
Ultra leiser Vorverstärker
Vergoldete Eingänge
Hohe qrade Bindungspfosten
Direkter AV-Eingang (Heimkino-Bypass)
CD-, DVD-, Tuner- und Bandeingang
Wunderschöne schlanke Systemfernbedienung
Digital gesteuerte analoge Lautstärkeregelung TI PGA 2311
Spezielle vibrationsdämpfende Füße
Vorverstärkerausgang
Kopfhörerausgang
Abnehmbares Netzkabel
Massiver Ringkerntransformator
Dicke, gebürstete Aluminiumblende
Gut lesbares und dimmbares Vakuum-Fluoreszenzdisplay
Solides Chassis
Spannungsschaltbar
Masse (inkl. Verpackung): 55.5 x 44.4 x 20.6 cm
Gewicht 11,34 kg
Music Hall CD25.3 Silber
€499.00*
ESS ES9018K2M Sabre 32bit/384 KHz Audio-DAC mit außergewöhnlicher Jitter-Unterdrückung
Frontplatte aus gebürstetem Aluminium für einen eleganten und modernen Look
Vibrationsgedämpfter CD-Transport für optimale Leistung
Vergoldeter Stereoausgang und koaxialer Digitalausgang für hochwertige Tonübertragung
Speziell gepolsterte, vibrationsdämpfende Füße zur Isolierung und Minimierung von Vibrationen
Spannungsbereich von 90 V – 240 V für den Einsatz an verschiedenen Orten
Systemfernbedienung für komfortable Bedienung
Übersichtliches Display für schnelle und einfache Navigation
Frequenzgang: 20 Hz – 20 kHz, +OdB / – 0,5 dB
Signal-Rausch-Verhältnis: 100 dB
Dynamisch: >95 dB
Kanaltrennung: >80 dB, 1 kHz
THD: <0,005 % (A-gewichtet)
Ausgangspegel: 2,0 V, 1 kHz
Leerlaufspannung: 1,0 Vp-p
Lastspannung: 0,5 Vp-p
CD-DAC: ESS ES9018K2M 32bit/384 KHz
Digitale Eingänge DAC: Comtrue CT5302
Transport: Sanyo HD850
Digitaler Ausgangsanschluss: Koaxial: 75 Ω
Abmessungen: B16,9 x T11,6 x H2,4 Zoll (B430 x T295 x H50 mm)
Gewicht: 11 Pfund. Pkgd. (5 kg)
Mitgeliefertes Zubehör: Netzkabel, Fernbedienung, 2 x AAA-Batterien
Music Hall mmf-2.3le
€499.00*
Music Hall mmf-2.3le turntable
The music hall mmf-2.3le turntable is a 2-speed belt driven audiophile turntable, with a special Ferrari red plinth, at a budget price.feature list
gorgeous high gloss Ferrari red lacquer finish
special vibration damping adjustable feet
top tier 8.6 1D carbon fiber tonearm with aluminum headshell
tonearm features a 4-point gimbal bearing assembly using ultra-precision ABEC bearings
tonearm is fully adjustable for VTA and azimuth
low noise fully manual belt-drive design
separately isolated DC synchronous motor for superior speed stability
two-speed stepped motor pulley for 33 1/3 and 45 rpm
music hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
the cartridge supplied is properly aligned and mounted
high precision stainless steel and bronze bearing assembly for quiet, fluid operation
high quality gold RCA connectors with detachable phono cable
full-size alloy platter and felt mat
excellent instruction manual
quick and easy to assemble
dust cover and 45 rpm adaptor
focus on components
Constructed using high quality components, the mmf-2.3 has been simplified to focus on the critical components: bearing, motor, and tonearm.
the complete package
The mmf-2.3 comes complete with a tonearm and music hall spirit cartridge precision mounted.
specifications
power supply
15V / 0-0.8mA DCuniversal power supply
power connection
100 13 240 Volt50 or 60 Hz
standby power consumption
< 1 W
speeds
33 1/3 rpm(manual change to 45 rpm)
wow and flutter
± 0.10 %
speed deviation
± 0.80%
rumble max
> 13 68 db
effective tonearm length
8.6 in. (218.5 mm)
effective arm mass
7.0 g
overhang
18.5 mm
product dimensions
w17in. x d13in. x h4.5in.
weight
17 lbs. pkg.
Music Hall A25.3 Silber
€599.00*
50-Watt-Verstärker pro Kanal für atemberaubenden Klang
Spezieller Phono-Vorverstärker mit beweglichem Magnet für Schallplatten
Premium-Funktionen wie Kopfhörerausgang und Vorverstärkerausgang
Bass-, Höhen- und Balanceregler
Extrem rauscharmer Vorverstärkerabschnitt für Klarheit
Schlanke Frontplatte aus gebürstetem Aluminium und solides Gehäuse
Vergoldete, schwere Lautsprecher-Anschlussklemmen
Gepolsterte vibrationsdämpfende Füße zur Schallisolierung
Mehrere Eingänge, darunter digitales und analoges Stereo, Bluetooth und Phono
Abnehmbares Netzkabel und Systemfernbedienung
Elegante schwarze Blende und Gehäuse
Abmessungen: 16,9" x 12,6" x 3,5"
Gewicht: 6,5 kg
Eingangsempfindlichkeit: RCA: 0,65 V Phono (NNI): 5 mV
Ausgangsleistung: 50 W bei 8 Ohm, 75 W bei 4 Ohm
Line-Out: 0,65 V
SNR: >90dB
THD+N: <0,02 % (20 Hz–20 kHz)
Frequenzgang: RCA: 20 Hz–20 kHz (-0,5 dB)
Phono-Eingang: RIAA-konform
Analoge Eingänge: 3 x Line-Pegel, 1 x Phono
Digitale Eingänge: 1 x optische Ebene, 1 x Bluetooth-Ebene
Im Lieferumfang enthaltenes Zubehör: Netzkabel, Fernbedienung, 2 x AAA-Batterien

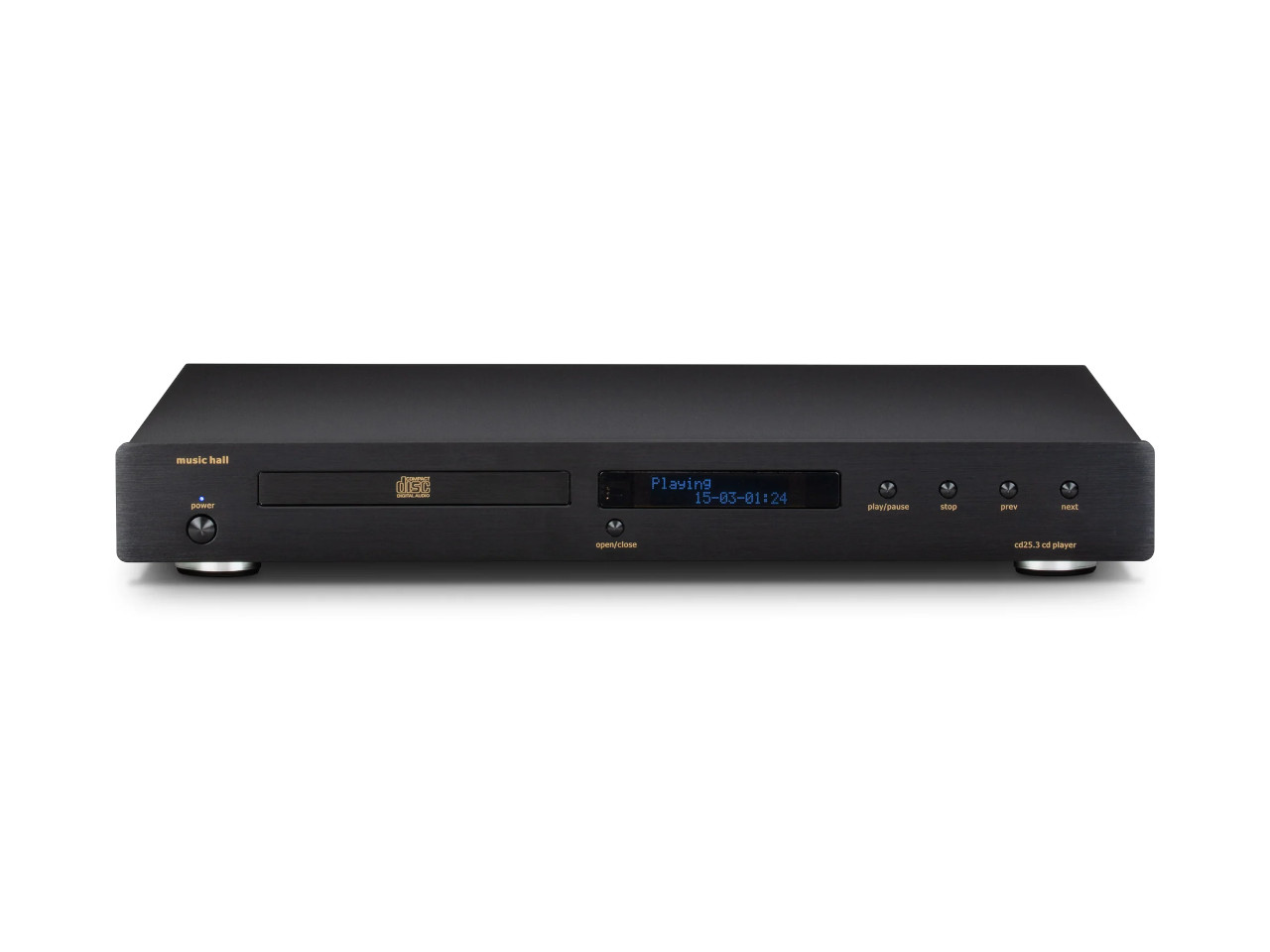

Music Hall CD25.3 Schwarz
€499.00*
ESS ES9018K2M Sabre 32bit/384 KHz Audio-DAC mit außergewöhnlicher Jitter-Unterdrückung
Frontplatte aus gebürstetem Aluminium für einen eleganten und modernen Look
Vibrationsgedämpfter CD-Transport für optimale Leistung
Vergoldeter Stereoausgang und koaxialer Digitalausgang für hochwertige Tonübertragung
Speziell gepolsterte, vibrationsdämpfende Füße zur Isolierung und Minimierung von Vibrationen
Spannungsbereich von 90 V – 240 V für den Einsatz an verschiedenen Orten
Systemfernbedienung für komfortable Bedienung
Übersichtliches Display für schnelle und einfache Navigation
Frequenzgang: 20 Hz – 20 kHz, +OdB / – 0,5 dB
Signal-Rausch-Verhältnis: 100 dB
Dynamisch: >95 dB
Kanaltrennung: >80 dB, 1 kHz
THD: <0,005 % (A-gewichtet)
Ausgangspegel: 2,0 V, 1 kHz
Leerlaufspannung: 1,0 Vp-p
Lastspannung: 0,5 Vp-p
CD-DAC: ESS ES9018K2M 32bit/384 KHz
Digitale Eingänge DAC: Comtrue CT5302
Transport: Sanyo HD850
Digitaler Ausgangsanschluss: Koaxial: 75 Ω
Abmessungen: B16,9 x T11,6 x H2,4 Zoll (B430 x T295 x H50 mm)
Gewicht: 11 Pfund. Pkgd. (5 kg)
Mitgeliefertes Zubehör: Netzkabel, Fernbedienung, 2 x AAA-Batterien
Music Hall c-dac15.3 silber (discontinued)
€599.00*
Music Hall c-dac15.3 CD / DAC
Versatility, performance, and value are the hallmarks of the c-dac15.3.
feature list
24bit/192kHz Burr-Brown PCM 1796 DAC
Exceptional jitter suppressing Wolfson WM8805 s/pdif transceiver
3 digital inputs (optical, coax, usb-b)
brushed aluminum faceplate
mid-ship mounted vibration damped CD transport
high efficiency toroidal power transformer
gold plated stereo output
coax digital output
plays CD, CD-R/RW
removable power cord
special padded vibration damping feet
voltage switchable
system remote control
easy to view display
black finish
one-box solution
By combining a fantastic 3-input dac with a great sounding cd player, we 19ve designed a one-box solution that will simplify and dramatically improve your digital music experience.
sound improvement
Connect it to a computer, Sonos, Apple TV, Airport Express, any digital streaming device, or simply play a cd, and you 19ll be amazed by the improvement in sound.The c-dac15.3 is easy to operate and partners beautifully with our matching a15.3 integrated amp.
technical specifications
analog outputs
frequency response:
20Hz 13 20KHz, +0dB / -0.5dB
signal-to-noise ratio::
105dB
dynamic:
>95dB
channel separation:
>100dB, 1kHz
THD:
<0.002% (A-Weighted)
output level:
2.2V, 1kHz
output impedance:
100 ohm
digital inputs
coaxial
Input format:
0.5Vpp/75 ohm (IEC60958-3 compliant)
input signal sampling frequency range:
32kHz to 192kHz
optical
input format:
JEITA CP-1212
input signal samplingfrequency range:
32kHz to 96kHz
USB
supports standard sample rates:
32 kHz, 44.1kHz, 48kHz, 96kHz
resolution:
16Bit to 24Bit
digital output
COAXIAL(IEC 60958)
Output impedance:
75
Open Voltage:
1.0 Vp-p
Load Voltage:
0.5 Vp-p
CD/DIGITAL INPUTS DAC:
Burr-Brown PCM 1796 24 bit/192 kHz
Transport:
Sanyo HD850
Digital Output Connection: Coaxial:
75 ohm
physical
Dimensions:
w16.9 x d13.2 x h3.1 in (w430 x d336 x h79 mm)
Weight:
11 lbs. pkgd. (5 kg)
Music Hall a35.2 Black
€999.00*
Der a35.2 ist ein großer, leistungsstark klingender integrierter Verstärker, der perfekt in den modernen Haushalt passt. Wir richten uns in erster Linie an Musikliebhaber mit einem Zweikanal-Audiosystem und haben einen direkten AV-Eingang (Heimkino-Bypass) für diejenigen, die den Verstärkerbereich des a35.2 verwenden möchten, um die Frontkanäle in einem Heimkino-Set mit Strom zu versorgen, oben.Der a35.2 wurde aus den feinsten Teilen gefertigt und von Hand zusammengebaut. Es sind die Herzverstärker, um die ein großartiges Soundsystem aufgebaut werden kann, und sie sind die perfekte Ergänzung zu unserem CD-Player CD35.2.
Features
85 Watt / Kanal Stereo-Verstärker
Ultra leiser Vorverstärker
Vergoldete Eingänge
Hohe qrade Bindungspfosten
Direkter AV-Eingang (Heimkino-Bypass)
CD-, DVD-, Tuner- und Bandeingang
Wunderschöne schlanke Systemfernbedienung
Digital gesteuerte analoge Lautstärkeregelung TI PGA 2311
Spezielle vibrationsdämpfende Füße
Vorverstärkerausgang
Kopfhörerausgang
Abnehmbares Netzkabel
Massiver Ringkerntransformator
Dicke, gebürstete Aluminiumblende
Gut lesbares und dimmbares Vakuum-Fluoreszenzdisplay
Solides Chassis
Spannungsschaltbar
Masse (inkl. Verpackung): 55.5 x 44.4 x 20.6 cm
Gewicht 11,34 kg
Music Hall mmf-5.3wh
€1,099.00*
Music Hall mmf-5.3 turntable
The music hall mmf-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall.
feature list
music hall 19s unique dual-plinth construction
gorgeous high-gloss white lacquer finish
top tier 9 1D carbon fiber tonearm
counterweight 19s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
DC synchronous motor for superior speed stability, separately isolated on the lower platform
two-speed stepped motor pulley for 33 1/3 and 45 rpm
Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus ($236 value)
the cartridge supplied is properly aligned and mounted
precision stainless steel main bearing sheathed in Teflon® for noise-free fluid operation
alloy platter with soft felt mat screw-on record clamp
high quality gold RCA connectors
detachable phono cable
special vibration damping adjustable feet
built-in round spirit level for proper leveling
low noise fully manual belt-drive design
excellent instruction manual and easy assembly
dust cover and 45 rpm adaptor included
distinctive design
The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform.
a complete package
Viso-elastic cones separate the two platforms and provide vibration damping.The mmf-5.3 comes complete with an Ortofon 2m Blue cartridge.
specifications
power supply
15V / 0-0.8mA DCuniversal power supply
power connection
100 13 240 Volt50 or 60 Hz
standby power consumption
< 1 W
speeds
33 1/3 rpm(manual change to 45 rpm)
wow and flutter
± 0.10 %
speed deviation
± 0.80%
rumble max
> 13 70 db
effective tonearm length
9 in. (230 mm)
tonearm weight
250 g (without counterweight)
effective tonearm mass
8.5 g
overhang
18 mm
product dimensions
w18.25in. x d13.25in. x h5.5in.
24 lbs. pkg.
%
Music Hall Mini2 schwarz
€69.00*
€99.00*
(30.3% saved)
Phono-Vorverstärker für MM- und High-Output MC-Tonabnehmer
Viele aktuelle Verstärker bieten keinen speziellen Phono-Eingang an. Der Mini 2 Phono ist die ideale Lösung für diese Hifi-Systeme. Er ermöglicht den Anschluss von MM und High-Output MC-Tonabnehmern und bietet audiophilen Musikgenuss zum Einsteigerpreis. Ein modernes Schaltungskonzept vermeidet Rauschen und Verzerrungen. Die integrierte Schirmung und das ausgelagerte Netzteil lassen externen Störungen kaum eine Chance. Wegen der kompakten Maße kann Mini 2 Phono nahe beim Plattenspieler platziert werden. Sowohl Eingangs- als auch Ausgangsbuchsen sind hartvergoldet, um Korrosion zu vermeiden. Mini 2 Phono wird mit einem Line-Eingang (AUX etc) des Verstärkers verbunden.
Für den Anschluss von MM- und High-Output MC- Tonabnehmern geeignet
Präzise Entzerrung nach RIAA-Kennlinie
Doppel-Mono-Aufbau für optimale Kanaltrennung, Rauscharme ICs
Metallgehäuse schützt vor Vibration und Einstreuungen
Produktabmessungen
Masse
10 x 4.8 x 3.6 cm
Gewicht
280 Gramm

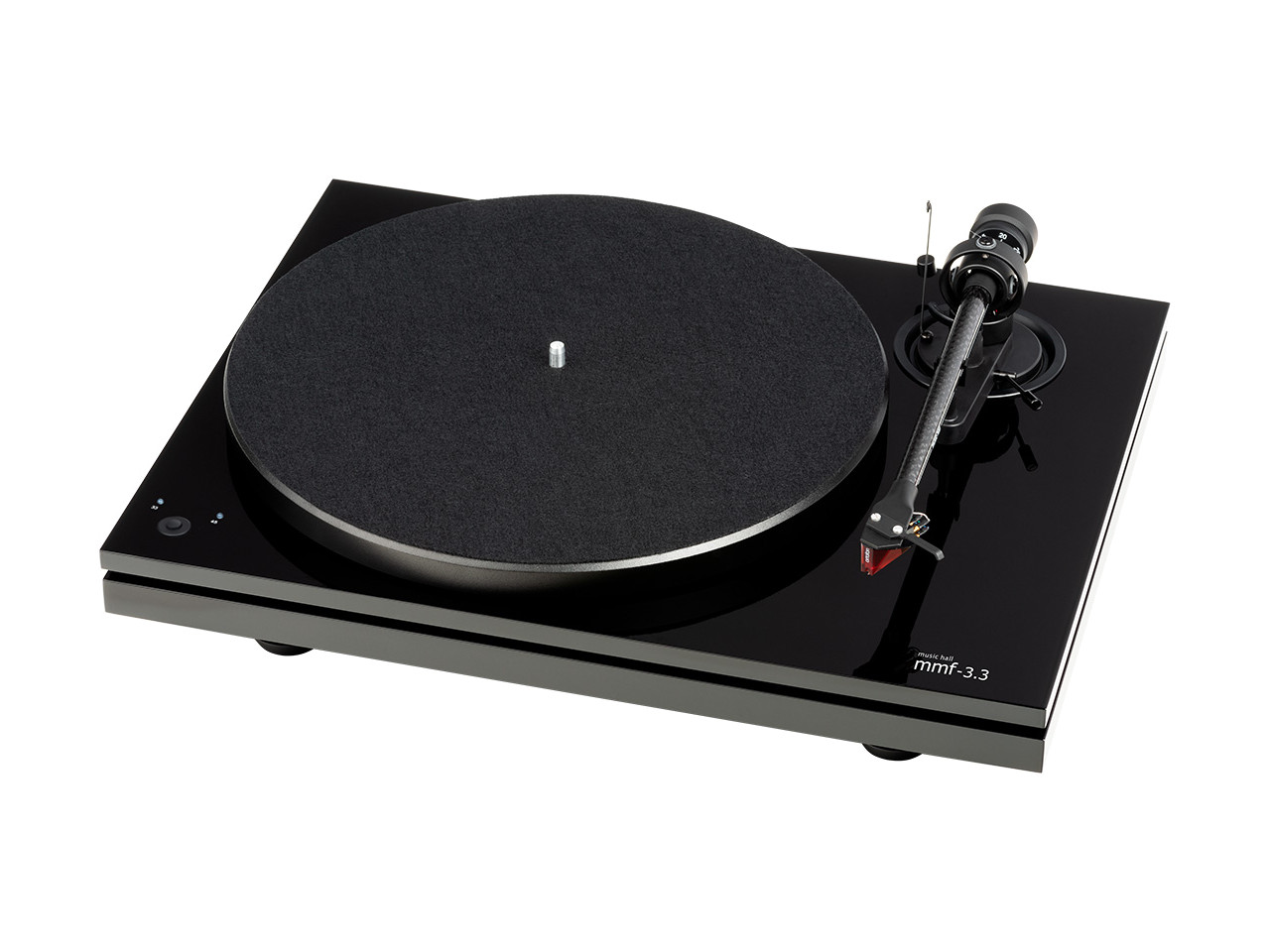

Music Hall mmf-3.3
€699.00*
Music Hall mmf-3.3 turntable
Our first entry-level table utilizing the unique dual-plinth technology!
We are pleased to introduce our first entry-level table utilizing the unique dual-plinth technology originated by music hall. The mmf-3.3 embodies the culmination of over 30 years of research, development, and most important of all, listening. The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance. The 3.3 is constructed using high quality components and comes complete with a tonearm, cartridge mounted, and dust cover.
feature list:
Gorgeous high-gloss piano black lacquer
Music Hall 19s unique dual-plinth design 13 isolating the electronics and motor from the main bearing and tonearm
33 1/3, 45, or 78 rpm speeds at the touch of a button
Electronic speed controlled DC motor for superior speed stability, isolated on lower plinth
Custom carbon fiber tonearm with alloy headshell for superb tracking ability
Flexible internal tonearm wire drawn from high purity copper
Counterweight 19s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
Tonearm features user adjustable VTA and azimuth
Highly regarded Ortofon 2M Red cartridge with replaceable elliptical stylus ($100 value)
The cartridge supplied is properly aligned and mounted
High precision stainless steel and bronze main bearing assembly for quiet fluid operation
Special vibration damping adjustable feet
High quality gold RCA connectors with detachable phono cable
Full-size alloy platter and felt mat
Quick and easy to assemble
Dust cover and 45 rpm adaptor included
focus on components
The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance.
the complete package
The mmf-3.3 comes complete with a tonearm and Ortofon 2M Red cartridge precision mounted.
Music Hall a15.3 silber (discontinued)
€599.00*
Music Hall a15.3 integrated amplifier
A smart alternative to surround sound receivers and all-in-one systems.
feature list
high-current 50 watt/ch amplifier
ultra low noise pre-amplifier section
brushed aluminum face plate
gold plated heavy gauge speaker binding posts
5 x analog stereo gold plated inputs
1 x pre-amp out
moving-magnet phono input
1 x 3.5mm headphone output
1 x 3.5mm front panel line input
special padded vibration damping feet
powerful high-current toroidal power transformer
solid chassis
voltage switchable
removable power cord
system remote control
black fascia + case
technical specifications
w17 x d14.3 x h3.1 in
19 lbs. pkg.
the perfect choice
The music hall a15.3 integrated amplifier presents a smart alternative to surround sound receivers and all in one systems. It 19s the perfect choice for someone looking to assemble their first hi end audio system.
versatility + power
Connecting a turntable couldn 19t be easier with the built-in moving magnet phono preamp.The amp delivers an impressive 50 watts/channel, which is plenty of power to drive the majority of loudspeakers on the market.
specifications
input sensitivity:
RCA: 330mVphono (MM): 1mV
power output
50W@8ohm75W@4ohm
pre out
660mV
snr
>90dB
thd+n
<0.02%(20Hz-20KHz)
frequency response
RCA: 20Hz-20KHz (-0.5dB)PHONO: RIAA compliant
analog inputs
6 x line level, 1 x phono
dimensions
w16.9 x d14.3 x h3.1 in.(w430 x d364 x h79 mm)
weight
14.3 lbs.(6.5 kg.)
supplied accessories
power cordremote control2 x AAA batteries
Music Hall a30.3 schwarz (discontinued)
€799.00*
Music Hall A30.3 integrated amplifier
Designed to be intuitively simple, the A30.3 takes the complexity out of integrating your analog and digital music
feature list
85 watt/channel integrated amp
MM phono pre-amp
3 digital inputs (USB, toslink, coax)
24bit/192kHz Cirrus Logic CS4398 DAC
Bluetooth connectivity
stout chassis with rigid aluminum faceplate
5 analog inputs
remote control
pre-amp out
easy to set up and use
system remote also controls the cdac15.3
amp + phono + DAC
A robust 85 watt/channel amplifier mated to an exceptionally quiet moving-magnet phono stage and scientifically proven digital to analog converter belie the understated traditional chassis. It is delightful to use and a pleasure to share with friends via the surprisingly natural-sounding and dynamic Bluetooth connection.
best of both worlds
The music hall a30.3 is an analog lover 19s dream that slices right through the digital world.This integrated amp pioneers new ground while remaining firmly planted in the analog universe.
technical specifications
input sensitivity:
RCA: 410mV, Phono (MM): 2mV
power output:
85W @ 8ohm160W @ 4ohm
pre-out:
800mV
SNR:
>100dB
THD+N:
<0.02% (20Hz-20KHz)
frequency response:
RCA: 20Hz-20KHz (+/- 0.5dB)PHONO: RIAA compliant
analog inputs:
5 x line level, 1 x phono
digital section
D/A CONVERTER:
Cirrus Logic CS4398
Sampling rate:
24bit/192K (COAX, OPTICAL, USB)
USB:
CM6631A
USB frequency:
>PCM 24bit/192k
BT:
V2.1+APTX
product specifications
Dimensions: 16.9w x 14.3d x 4.0h in. (430w x 364d x 102h mm) Weight: 17.6 lbs. (8 kg.)
Music Hall a15.3 schwarz (discontinued)
€599.00*
Music Hall a15.3 integrated amplifier
A smart alternative to surround sound receivers and all-in-one systems.
feature list
high-current 50 watt/ch amplifier
ultra low noise pre-amplifier section
brushed aluminum face plate
gold plated heavy gauge speaker binding posts
5 x analog stereo gold plated inputs
1 x pre-amp out
moving-magnet phono input
1 x 3.5mm headphone output
1 x 3.5mm front panel line input
special padded vibration damping feet
powerful high-current toroidal power transformer
solid chassis
voltage switchable
removable power cord
system remote control
black fascia + case
technical specifications
w17 x d14.3 x h3.1 in
19 lbs. pkg.
the perfect choice
The music hall a15.3 integrated amplifier presents a smart alternative to surround sound receivers and all in one systems. It 19s the perfect choice for someone looking to assemble their first hi end audio system.
versatility + power
Connecting a turntable couldn 19t be easier with the built-in moving magnet phono preamp.The amp delivers an impressive 50 watts/channel, which is plenty of power to drive the majority of loudspeakers on the market.
specifications
input sensitivity:
RCA: 330mVphono (MM): 1mV
power output
50W@8ohm75W@4ohm
pre out
660mV
snr
>90dB
thd+n
<0.02%(20Hz-20KHz)
frequency response
RCA: 20Hz-20KHz (-0.5dB)PHONO: RIAA compliant
analog inputs
6 x line level, 1 x phono
dimensions
w16.9 x d14.3 x h3.1 in.(w430 x d364 x h79 mm)
weight
14.3 lbs.(6.5 kg.)
supplied accessories
power cordremote control2 x AAA batteries
Music Hall A25.3 Schwarz
€599.00*
50-Watt-Verstärker pro Kanal für atemberaubenden Klang
Spezieller Phono-Vorverstärker mit beweglichem Magnet für Schallplatten
Premium-Funktionen wie Kopfhörerausgang und Vorverstärkerausgang
Bass-, Höhen- und Balanceregler
Extrem rauscharmer Vorverstärkerabschnitt für Klarheit
Schlanke Frontplatte aus gebürstetem Aluminium und solides Gehäuse
Vergoldete, schwere Lautsprecher-Anschlussklemmen
Gepolsterte vibrationsdämpfende Füße zur Schallisolierung
Mehrere Eingänge, darunter digitales und analoges Stereo, Bluetooth und Phono
Abnehmbares Netzkabel und Systemfernbedienung
Elegante schwarze Blende und Gehäuse
Abmessungen: 16,9" x 12,6" x 3,5"
Gewicht: 6,5 kg
Eingangsempfindlichkeit: RCA: 0,65 V Phono (NNI): 5 mV
Ausgangsleistung: 50 W bei 8 Ohm, 75 W bei 4 Ohm
Line-Out: 0,65 V
SNR: >90dB
THD+N: <0,02 % (20 Hz–20 kHz)
Frequenzgang: RCA: 20 Hz–20 kHz (-0,5 dB)
Phono-Eingang: RIAA-konform
Analoge Eingänge: 3 x Line-Pegel, 1 x Phono
Digitale Eingänge: 1 x optische Ebene, 1 x Bluetooth-Ebene
Im Lieferumfang enthaltenes Zubehör: Netzkabel, Fernbedienung, 2 x AAA-Batterien
Music Hall a30.3 silber (discontinued)
€799.00*
Music Hall A30.3 integrated amplifier
Designed to be intuitively simple, the A30.3 takes the complexity out of integrating your analog and digital music
feature list
85 watt/channel integrated amp
MM phono pre-amp
3 digital inputs (USB, toslink, coax)
24bit/192kHz Cirrus Logic CS4398 DAC
Bluetooth connectivity
stout chassis with rigid aluminum faceplate
5 analog inputs
remote control
pre-amp out
easy to set up and use
system remote also controls the cdac15.3
amp + phono + DAC
A robust 85 watt/channel amplifier mated to an exceptionally quiet moving-magnet phono stage and scientifically proven digital to analog converter belie the understated traditional chassis. It is delightful to use and a pleasure to share with friends via the surprisingly natural-sounding and dynamic Bluetooth connection.
best of both worlds
The music hall a30.3 is an analog lover 19s dream that slices right through the digital world.This integrated amp pioneers new ground while remaining firmly planted in the analog universe.
technical specifications
input sensitivity:
RCA: 410mV, Phono (MM): 2mV
power output:
85W @ 8ohm160W @ 4ohm
pre-out:
800mV
SNR:
>100dB
THD+N:
<0.02% (20Hz-20KHz)
frequency response:
RCA: 20Hz-20KHz (+/- 0.5dB)PHONO: RIAA compliant
analog inputs:
5 x line level, 1 x phono
digital section
D/A CONVERTER:
Cirrus Logic CS4398
Sampling rate:
24bit/192K (COAX, OPTICAL, USB)
USB:
CM6631A
USB frequency:
>PCM 24bit/192k
BT:
V2.1+APTX
product specifications
Dimensions: 16.9w x 14.3d x 4.0h in. (430w x 364d x 102h mm) Weight: 17.6 lbs. (8 kg.)
Music Hall mmf-3.3le
€699.00*
Music Hall mmf-3.3 turntable
Our first entry-level table utilizing the unique dual-plinth technology!
We are pleased to introduce our first entry-level table utilizing the unique dual-plinth technology originated by music hall. The mmf-3.3 embodies the culmination of over 30 years of research, development, and most important of all, listening. The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance. The 3.3 is constructed using high quality components and comes complete with a tonearm, cartridge mounted, and dust cover.
feature list:
Gorgeous high gloss Ferrari red lacquer finish
Music Hall 19s unique dual-plinth design 13 isolating the electronics and motor from the main bearing and tonearm
33 1/3, 45, or 78 rpm speeds at the touch of a button
Electronic speed controlled DC motor for superior speed stability, isolated on lower plinth
Custom carbon fiber tonearm with alloy headshell for superb tracking ability
Flexible internal tonearm wire drawn from high purity copper
Counterweight 19s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
Tonearm features user adjustable VTA and azimuth
Highly regarded Ortofon 2M Red cartridge with replaceable elliptical stylus ($100 value)
The cartridge supplied is properly aligned and mounted
High precision stainless steel and bronze main bearing assembly for quiet fluid operation
Special vibration damping adjustable feet
High quality gold RCA connectors with detachable phono cable
Full-size alloy platter and felt mat
Quick and easy to assemble
Dust cover and 45 rpm adaptor included
focus on components
The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance.
the complete package
The mmf-3.3 comes complete with a tonearm and Ortofon 2M Red cartridge precision mounted.
Music Hall c-dac15.3 schwarz (discontinued)
€599.00*
Music Hall c-dac15.3 CD / DAC
Versatility, performance, and value are the hallmarks of the c-dac15.3.
feature list
24bit/192kHz Burr-Brown PCM 1796 DAC
Exceptional jitter suppressing Wolfson WM8805 s/pdif transceiver
3 digital inputs (optical, coax, usb-b)
brushed aluminum faceplate
mid-ship mounted vibration damped CD transport
high efficiency toroidal power transformer
gold plated stereo output
coax digital output
plays CD, CD-R/RW
removable power cord
special padded vibration damping feet
voltage switchable
system remote control
easy to view display
black finish
one-box solution
By combining a fantastic 3-input dac with a great sounding cd player, we 19ve designed a one-box solution that will simplify and dramatically improve your digital music experience.
sound improvement
Connect it to a computer, Sonos, Apple TV, Airport Express, any digital streaming device, or simply play a cd, and you 19ll be amazed by the improvement in sound.The c-dac15.3 is easy to operate and partners beautifully with our matching a15.3 integrated amp.
technical specifications
analog outputs
frequency response:
20Hz 13 20KHz, +0dB / -0.5dB
signal-to-noise ratio::
105dB
dynamic:
>95dB
channel separation:
>100dB, 1kHz
THD:
<0.002% (A-Weighted)
output level:
2.2V, 1kHz
output impedance:
100 ohm
digital inputs
coaxial
Input format:
0.5Vpp/75 ohm (IEC60958-3 compliant)
input signal sampling frequency range:
32kHz to 192kHz
optical
input format:
JEITA CP-1212
input signal samplingfrequency range:
32kHz to 96kHz
USB
supports standard sample rates:
32 kHz, 44.1kHz, 48kHz, 96kHz
resolution:
16Bit to 24Bit
digital output
COAXIAL(IEC 60958)
Output impedance:
75
Open Voltage:
1.0 Vp-p
Load Voltage:
0.5 Vp-p
CD/DIGITAL INPUTS DAC:
Burr-Brown PCM 1796 24 bit/192 kHz
Transport:
Sanyo HD850
Digital Output Connection: Coaxial:
75 ohm
physical
Dimensions:
w16.9 x d13.2 x h3.1 in (w430 x d336 x h79 mm)
Weight:
11 lbs. pkgd. (5 kg)
Music Hall mmf-5.3
€1,099.00*
Music Hall mmf-5.3 turntable
The music hall mmf-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall.
feature list
music hall 19s unique dual-plinth construction
gorgeous high-gloss piano black lacquer finish
top tier 9 1D carbon fiber tonearm
counterweight 19s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
DC synchronous motor for superior speed stability, separately isolated on the lower platform
two-speed stepped motor pulley for 33 1/3 and 45 rpm
Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus ($236 value)
the cartridge supplied is properly aligned and mounted
precision stainless steel main bearing sheathed in Teflon® for noise-free fluid operation
alloy platter with soft felt mat screw-on record clamp
high quality gold RCA connectors
detachable phono cable
special vibration damping adjustable feet
built-in round spirit level for proper leveling
low noise fully manual belt-drive design
excellent instruction manual and easy assembly
dust cover and 45 rpm adaptor included
distinctive design
The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform.
a complete package
Viso-elastic cones separate the two platforms and provide vibration damping.The mmf-5.3 comes complete with an Ortofon 2m Blue cartridge.
specifications
power supply
15V / 0-0.8mA DCuniversal power supply
power connection
100 13 240 Volt50 or 60 Hz
standby power consumption
< 1 W
speeds
33 1/3 rpm(manual change to 45 rpm)
wow and flutter
± 0.10 %
speed deviation
± 0.80%
rumble max
> 13 70 db
effective tonearm length
9 in. (230 mm)
tonearm weight
250 g (without counterweight)
effective tonearm mass
8.5 g
overhang
18 mm
product dimensions
w18.25in. x d13.25in. x h5.5in.
24 lbs. pkg.
Music Hall mmf-5.3se
€1,299.00*
Music Hall mmf-5.3 turntable
The music hall mmf-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall.
feature list
music hall 19s unique dual-plinth construction
gorgeous and classic-looking rosenut real wood veneer finish
top tier 9 1D carbon fiber tonearm
counterweight 19s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
DC synchronous motor for superior speed stability, separately isolated on the lower platform
two-speed stepped motor pulley for 33 1/3 and 45 rpm
Ortofon 2M Bronze cartridge with replaceable nude fine line diamond stylus ($440 value)
the cartridge supplied is properly aligned and mounted
precision stainless steel main bearing sheathed in Teflon® for noise-free fluid operation
alloy platter with soft felt mat screw-on record clamp
high quality gold RCA connectors
detachable phono cable
special vibration damping adjustable feet
built-in round spirit level for proper leveling
low noise fully manual belt-drive design
excellent instruction manual and easy assembly
dust cover and 45 rpm adaptor included
distinctive design
The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform.
a complete package
Viso-elastic cones separate the two platforms and provide vibration damping.The mmf-5.3se comes complete with an Ortofon 2m Bronze cartridge.
specifications
power supply
15V / 0-0.8mA DCuniversal power supply
power connection
100 13 240 Volt50 or 60 Hz
standby power consumption
< 1 W
speeds
33 1/3 rpm(manual change to 45 rpm)
wow and flutter
± 0.10 %
speed deviation
± 0.80%
rumble max
> 13 70 db
effective tonearm length
9 in. (230 mm)
tonearm weight
250 g (without counterweight)
effective tonearm mass
8.5 g
overhang
18 mm
product dimensions
w18.25in. x d13.25in. x h5.5in.
24 lbs. pkg.
Music Hall US-1
€259.00*
US-1 turntable
Music Hall 19s US-1 is a convenient, easy to use, and fun turntable. It 19s a snap to set up and comes with everything you need to start spinning vinyl.
get your groove on
Whether you 19re looking to digitize and download your record collection, release your inner DJ, or simply discover the joy of spinning vinyl, the usb-1 is your answer.
a complete package
The us-1 has a built-in phono preamp, cartridge, dust cover, and includes all necessary cables and software required for simple plug and play operation.
us-1 feature list
extremely quiet belt drive, 2-speed turntable
aluminum die-cast platter
33 1/3 and 45 rpm
high gloss black finish
encode mp3s and transfer them to your iPod using iTunes
free Audacity software included
analog output via built-in Phono Amp or direct line out
static balanced S-shaped tonearm w/detachable headshell
Audio Technica AT3600L moving-magnet cartridge supplied
anti-skating control for increased stereo balance
+/- 10% adjustable pitch control
dust cover included
designed and developed in the US and France
w17.7 x d13.8 x h5.7 in.
12 lbs. pkg.
Music Hall mmf-2.3
€499.00*
Music Hall mmf-2.3 turntable
The music hall mmf-2.3 turntable is a 2-speed belt driven audiophile turntable at a budget price.
feature list
gorgeous high gloss piano black lacquer finish
special vibration damping adjustable feet
top tier 8.6 1D carbon fiber tonearm with aluminum headshell
tonearm features a 4-point gimbal bearing assembly using ultra-precision ABEC bearings
tonearm is fully adjustable for VTA and azimuth
low noise fully manual belt-drive design
separately isolated DC synchronous motor for superior speed stability
two-speed stepped motor pulley for 33 1/3 and 45 rpm
music hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
the cartridge supplied is properly aligned and mounted
high precision stainless steel and bronze bearing assembly for quiet, fluid operation
high quality gold RCA connectors with detachable phono cable
full-size alloy platter and felt mat
excellent instruction manual
quick and easy to assemble
dust cover and 45 rpm adaptor
focus on components
Constructed using high quality components, the mmf-2.3 has been simplified to focus on the critical components: bearing, motor, and tonearm.
the complete package
The mmf-2.3 comes complete with a tonearm and music hall spirit cartridge precision mounted.
specifications
power supply
15V / 0-0.8mA DCuniversal power supply
power connection
100 13 240 Volt50 or 60 Hz
standby power consumption
< 1 W
speeds
33 1/3 rpm(manual change to 45 rpm)
wow and flutter
± 0.10 %
speed deviation
± 0.80%
rumble max
> 13 68 db
effective tonearm length
8.6 in. (218.5 mm)
effective arm mass
7.0 g
overhang
18.5 mm
product dimensions
w17in. x d13in. x h4.5in.
weight
17 lbs. pkg.

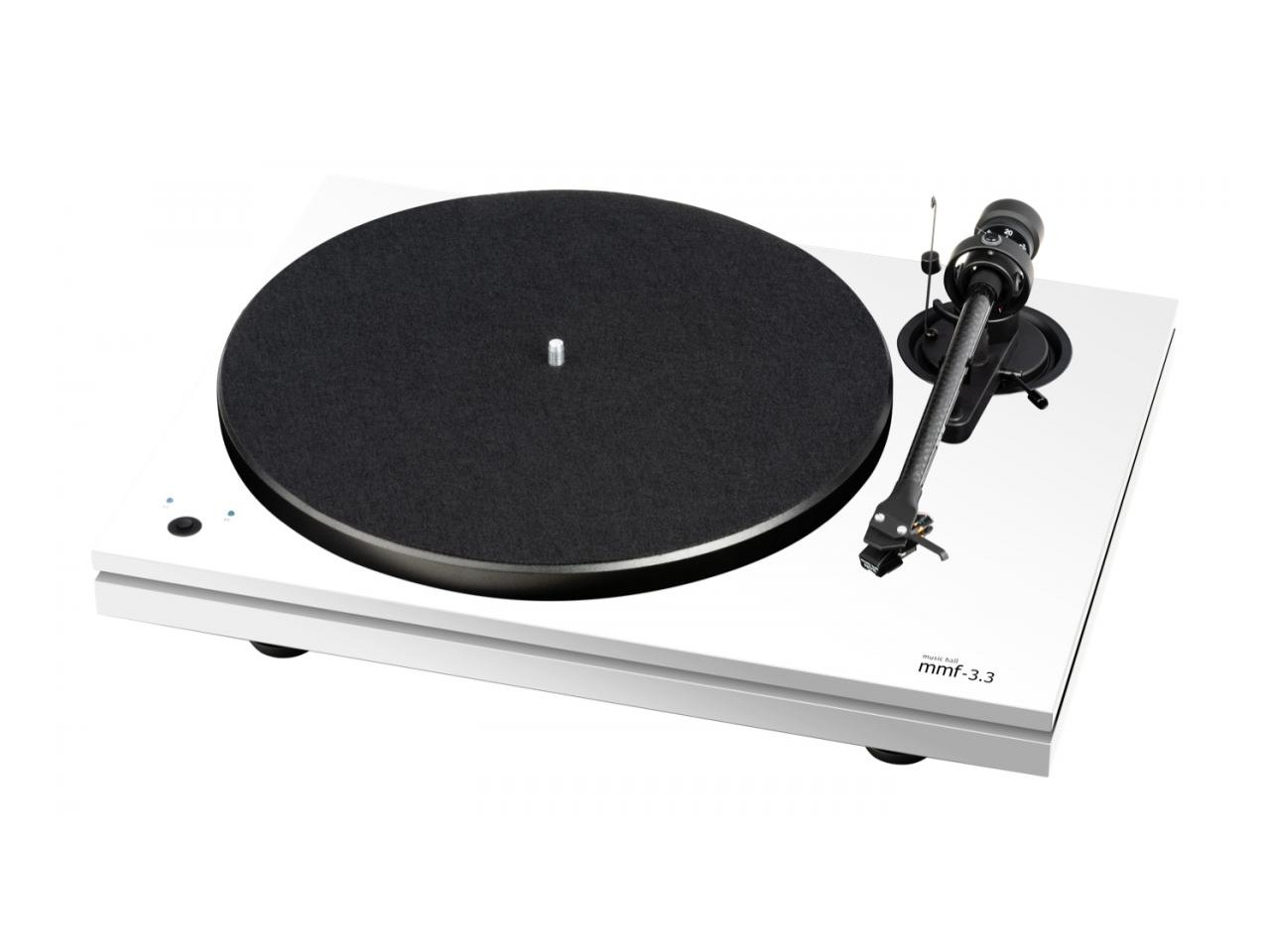

Music Hall mmf-3.3wh
€699.00*
Music Hall mmf-3.3 turntable
Our first entry-level table utilizing the unique dual-plinth technology!
We are pleased to introduce our first entry-level table utilizing the unique dual-plinth technology originated by music hall. The mmf-3.3 embodies the culmination of over 30 years of research, development, and most important of all, listening. The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance. The 3.3 is constructed using high quality components and comes complete with a tonearm, cartridge mounted, and dust cover.
feature list:
Gorgeous high-gloss white lacquer
Music Hall 19s unique dual-plinth design 13 isolating the electronics and motor from the main bearing and tonearm
33 1/3, 45, or 78 rpm speeds at the touch of a button
Electronic speed controlled DC motor for superior speed stability, isolated on lower plinth
Custom carbon fiber tonearm with alloy headshell for superb tracking ability
Flexible internal tonearm wire drawn from high purity copper
Counterweight 19s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
Tonearm features user adjustable VTA and azimuth
Highly regarded Ortofon 2M Red cartridge with replaceable elliptical stylus ($100 value)
The cartridge supplied is properly aligned and mounted
High precision stainless steel and bronze main bearing assembly for quiet fluid operation
Special vibration damping adjustable feet
High quality gold RCA connectors with detachable phono cable
Full-size alloy platter and felt mat
Quick and easy to assemble
Dust cover and 45 rpm adaptor included
focus on components
The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance.
the complete package
The mmf-3.3 comes complete with a tonearm and Ortofon 2M Red cartridge precision mounted.

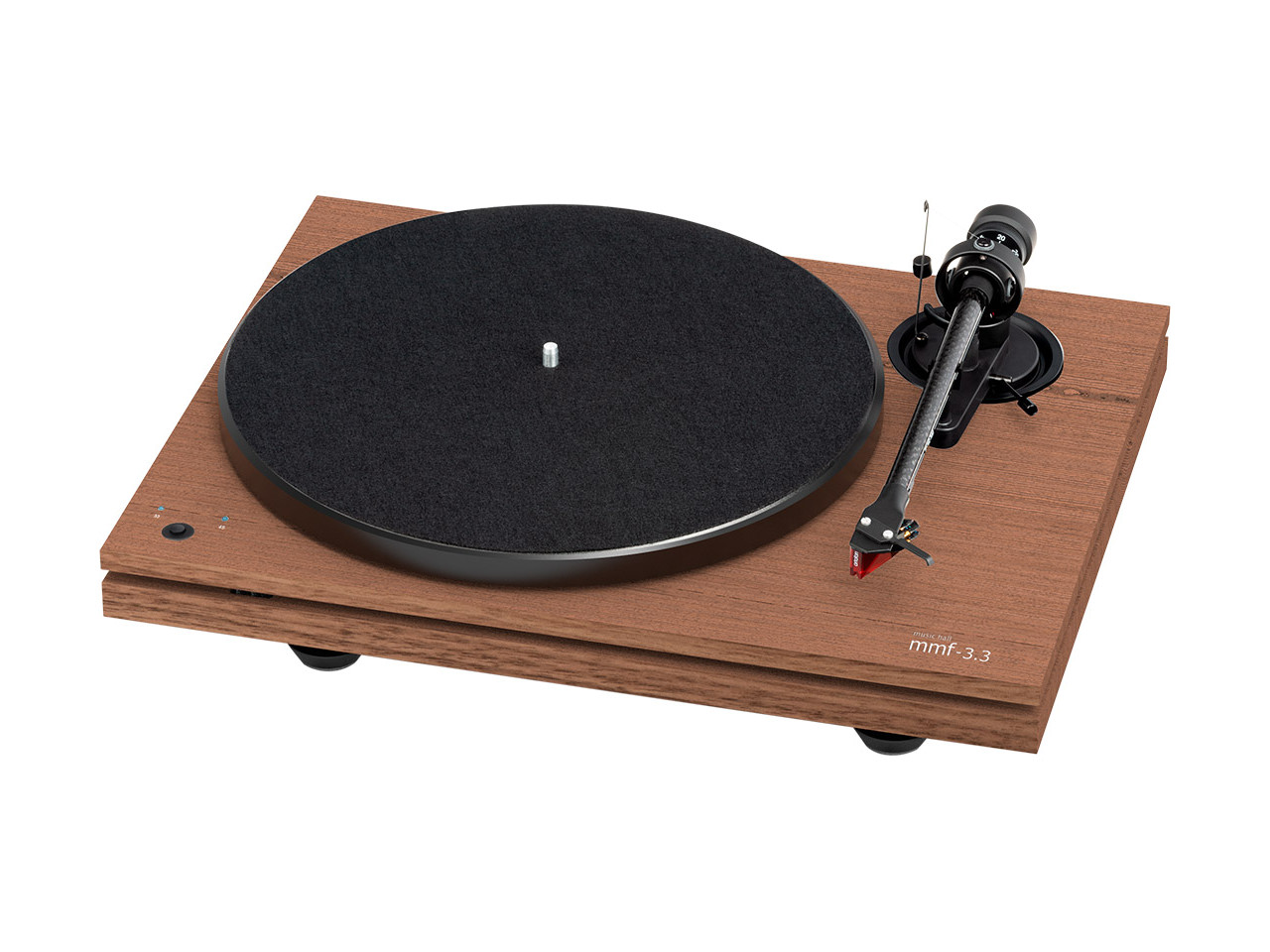

Music Hall mmf-3.3se
€799.00*
Music Hall mmf-3.3 turntable
Our first entry-level table utilizing the unique dual-plinth technology!
We are pleased to introduce our first entry-level table utilizing the unique dual-plinth technology originated by music hall. The mmf-3.3 embodies the culmination of over 30 years of research, development, and most important of all, listening. The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance. The 3.3 is constructed using high quality components and comes complete with a tonearm, cartridge mounted, and dust cover.
feature list:
Exquisite walnut veneer finish
Music Hall 19s unique dual-plinth design 13 isolating the electronics and motor from the main bearing and tonearm
33 1/3, 45, or 78 rpm speeds at the touch of a button
Electronic speed controlled DC motor for superior speed stability, isolated on lower plinth
Custom carbon fiber tonearm with alloy headshell for superb tracking ability
Flexible internal tonearm wire drawn from high purity copper
Counterweight 19s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
Tonearm features user adjustable VTA and azimuth
Highly regarded Ortofon 2M Red cartridge with replaceable elliptical stylus ($100 value)
The cartridge supplied is properly aligned and mounted
High precision stainless steel and bronze main bearing assembly for quiet fluid operation
Special vibration damping adjustable feet
High quality gold RCA connectors with detachable phono cable
Full-size alloy platter and felt mat
Quick and easy to assemble
Dust cover and 45 rpm adaptor included
focus on components
The 3-speed belt driven table was developed for those seeking a perfectly matched set of features with an uncompromising focus on sound performance.
the complete package
The mmf-3.3 comes complete with a tonearm and Ortofon 2M Red cartridge precision mounted.
