Product information "Musical Fidelity LX-LPS schwarz"
The LX-LPS is a very high performance MM/MC phono stage with TWO turntable inputs. Each input has an extra pair of input sockets so you can achieve exact impedance matching. The circuitry is derived from the MX-VYNL so it is unsurprising that the technical performance is outstanding.
- Separate MM/MC
- selectable inputs
- Extremely accurate RIAA extending out to 80kHz
- Distortion is negligible from 20Hz - 20kHz
- Excellent overload margin
- Excellent channel separation
- Customisable loading plugs
- Beautiful build quality
Technische Daten:
MM | |
Input Impedance | 47 KOhm |
Input Sensitivity | 3.0mV |
Total Harmonic Distortion | 0.01% |
Signal to Noise Ratio | >80dB |
Input Overload Margin | 15dB |
MC | |
Input Impedance | 100 Ohm |
Input Sensitivity | 0.3mV |
Total Harmonic Distortion | 0.01% |
Signal to Noise Ratio | >70dB |
Input Overload Margin | 22dB |
General | |
RIAA Response | +-0.25dB |
Power Requirement | 5V 500mA |

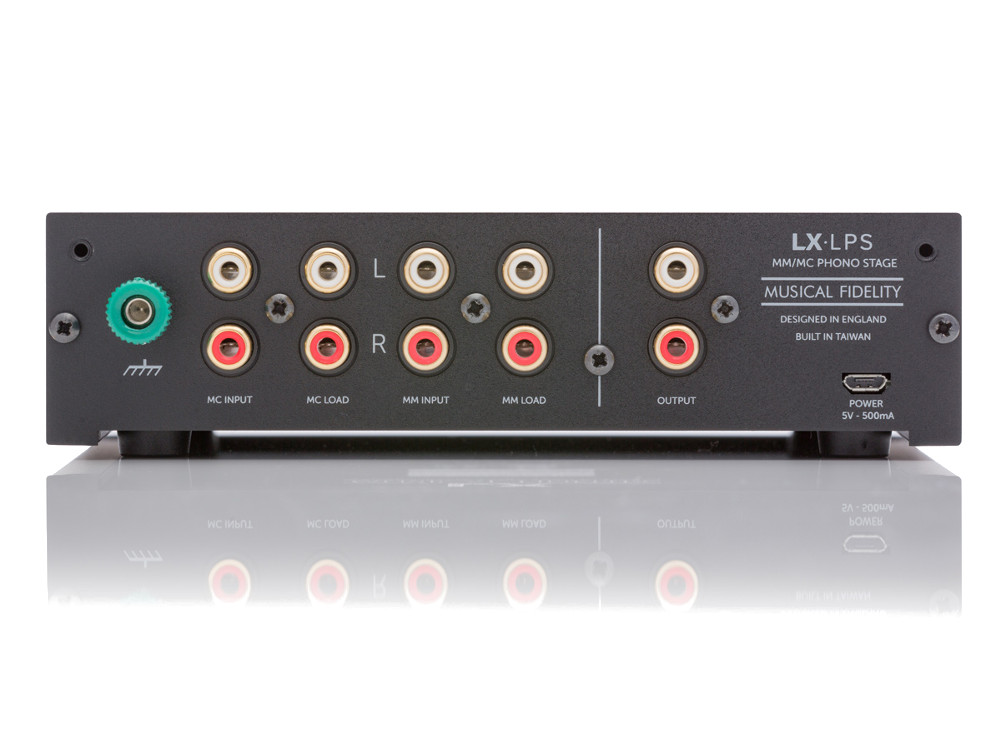

Connections | |
Moving Magnet Input | 1pr RCA sockets |
Moving Magnet Loading | 1pr RCA sockets |
Moving Coil Input | 1pr RCA sockets |
Moving Coil Loading | 1pr RCA sockets |
Power Input | Micro USB |
Dimensions | Length (including terminals) 197 mm, Width 172 mm, Height (including feet) 46.5 mm |
Weight | |
(Unpacked / packed) | 1.05 kg/ 1.50 kg |
Included accessories | |
Power Supply | |
2 x 100Ohm RCA Plugs (Green for MC loading) | |
2 x 47pF RCA Plugs (Blue for MM loading) |
