€568.00*
% €649.00* (12.48% saved)
( Pieceprice )
In stock - ready for immediate dispatch
Available variants
Product number:
019276
Product information: Technische Daten
Tonabnehmer-Typ:MM (Moving-Magnet)
Ausgangsspannung:5mV
Verstärkeranschluss:Phono MM
Kanalabweichung bei 1 kHz:1dB
Übersprechdämpfung bei 1kHz:26dB
Übersprechdämpfung bei 15kHz:15dB
...
More

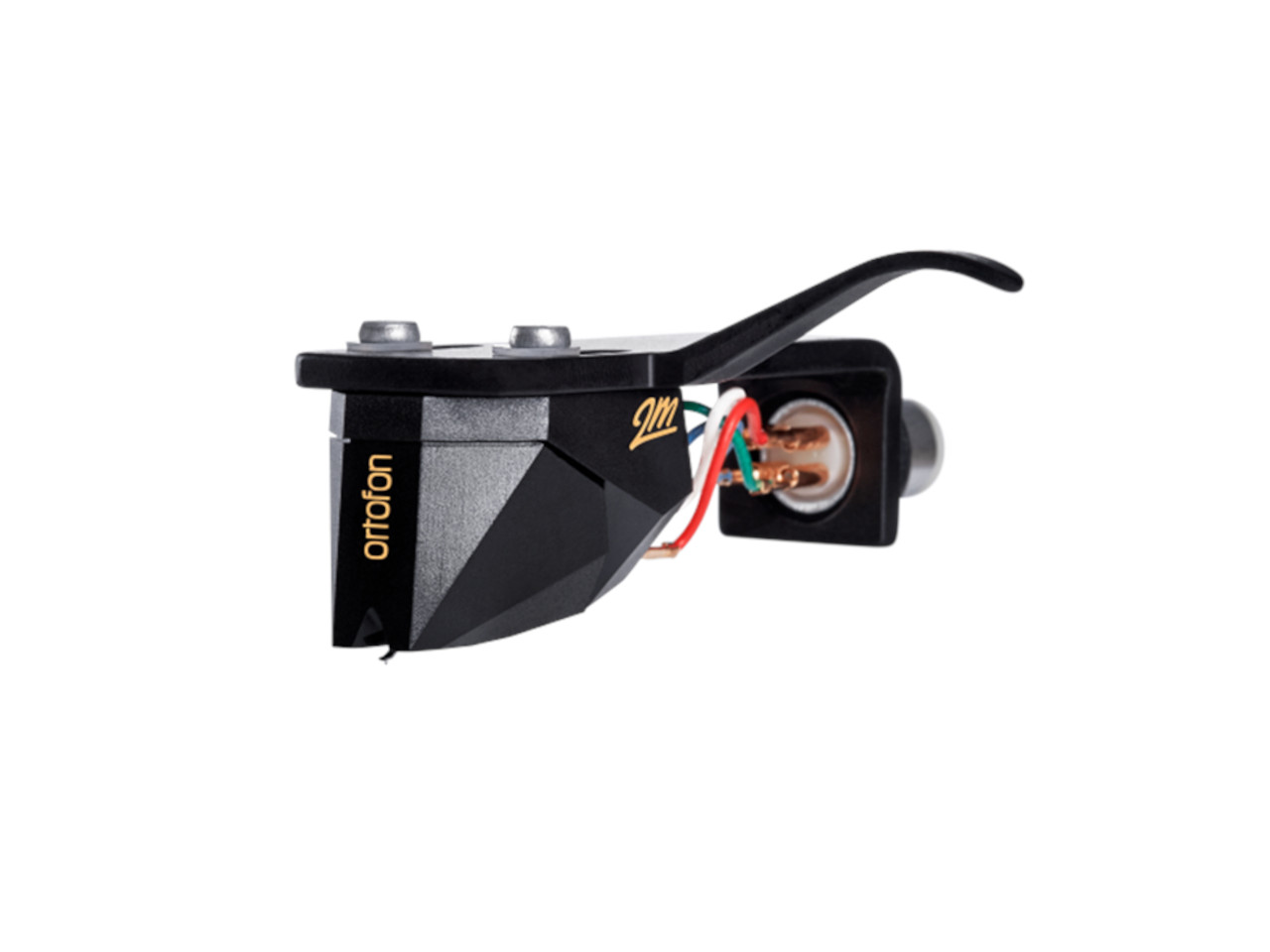

Product information "Ortofon 2M Black"
Technische Daten
Tonabnehmer-Typ: | MM (Moving-Magnet) |
Ausgangsspannung: | 5mV |
Verstärkeranschluss: | Phono MM |
Kanalabweichung bei 1 kHz: | 1dB |
Übersprechdämpfung bei 1kHz: | 26dB |
Übersprechdämpfung bei 15kHz: | 15dB |
Frequenzbereich: | 20 - 31.000Hz |
Frequenzgang: | 20 - 20.000Hz +2/0dB |
Abtastfähigkeit bei 315Hz: | 80µm |
Nadelnachgiebigkeit: | 22µm/mN |
Abtastdiamant: | Shibata, nackt |
Verrundung: | r/R 6/50 µm |
Auflagekraftbereich: | 14-17mN (1,4-1,7g) |
empf. Auflagekraft: | 15mN (1,5g) |
Abtastwinkel: | 20 Grad |
Gleichstromwiderstand: | 1,2kOhm |
Induktivität: | 630mH |
empf. Abschlusswiderstand: | 47kOhm |
empf. Abschlusskapazität: | 150-300pF |
Gehäusematerial: | Noryl/Glas-Verbundwerkstoff |
Gewicht: | 7,2g |
Ersatz-Nadeleinschub: | Stylus 2M Black |
