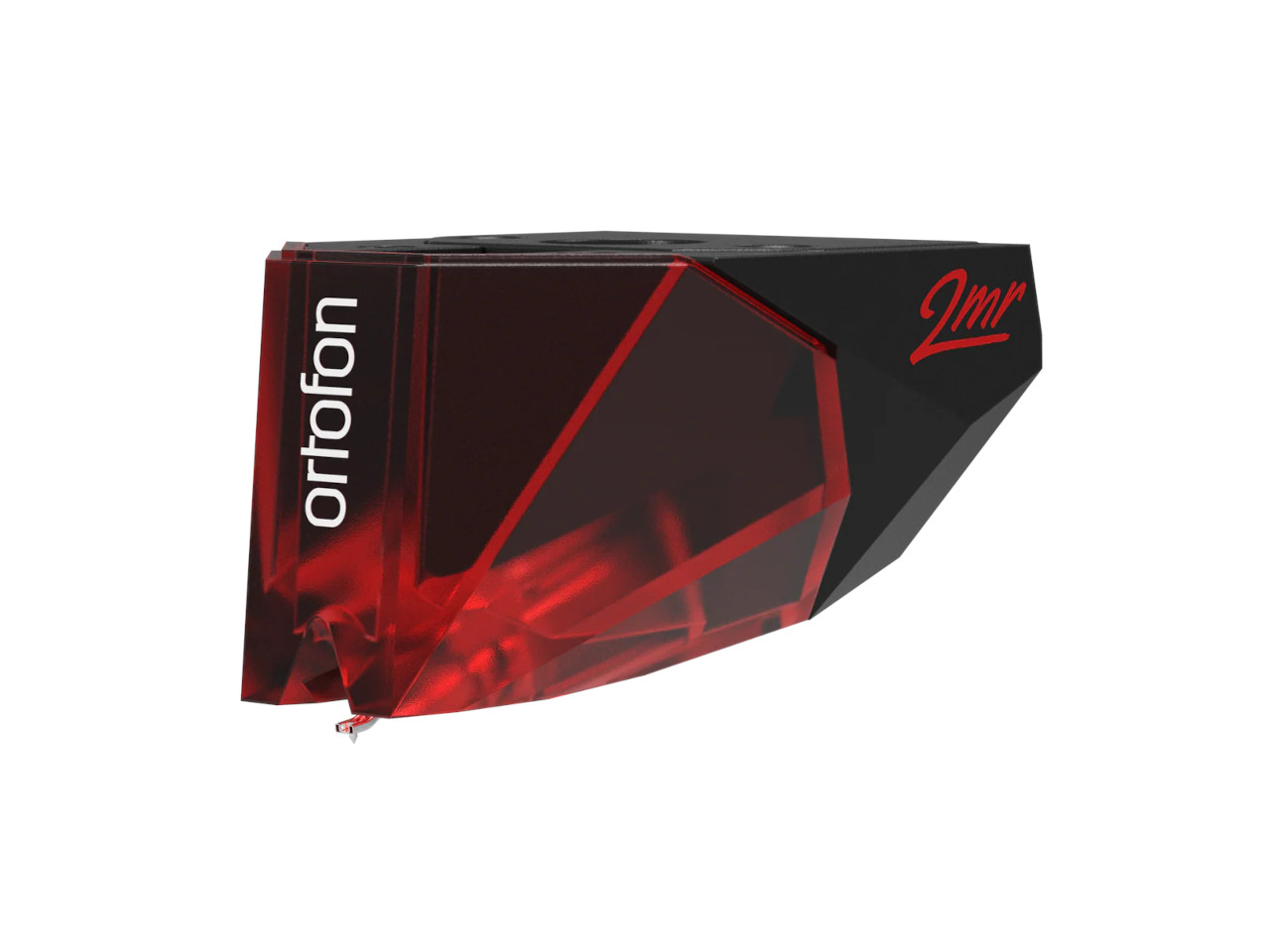

Ortofon 2M Red

Skip product gallery

Buy together with

slide 1 to 4

Product information "Ortofon 2M Red"

Technische Daten
Tonabnehmer-Typ:MM (Moving-Magnet)
Ausgangsspannung:5,5mV
Verstärkeranschluss:Phono MM
Kanalabweichung bei 1 kHz:1,5dB
Übersprechdämpfung bei 1kHz:22dB
Übersprechdämpfung bei 15kHz:15dB
Frequenzbereich:20 - 22.000Hz
Frequenzgang:20 - 20.000Hz +3/-1dB
Abtastfähigkeit bei 315Hz:70µm
Nadelnachgiebigkeit:20µm/mN
Abtastdiamant:Elliptisch
Verrundung:r/R 8/18 µm
Auflagekraftbereich:16-20mN (1,6-2,0g)
empf. Auflagekraft:18mN (1,8g)
Abtastwinkel:20 Grad
Gleichstromwiderstand:1,3kOhm
Induktivität:700mH
empf. Abschlusswiderstand:47kOhm
empf. Abschlusskapazität:150-300pF
Gehäusematerial:Noryl/Glas-Verbundwerkstoff
Gewicht:7,2g
Ersatz-Nadeleinschub:Stylus 2M Red
