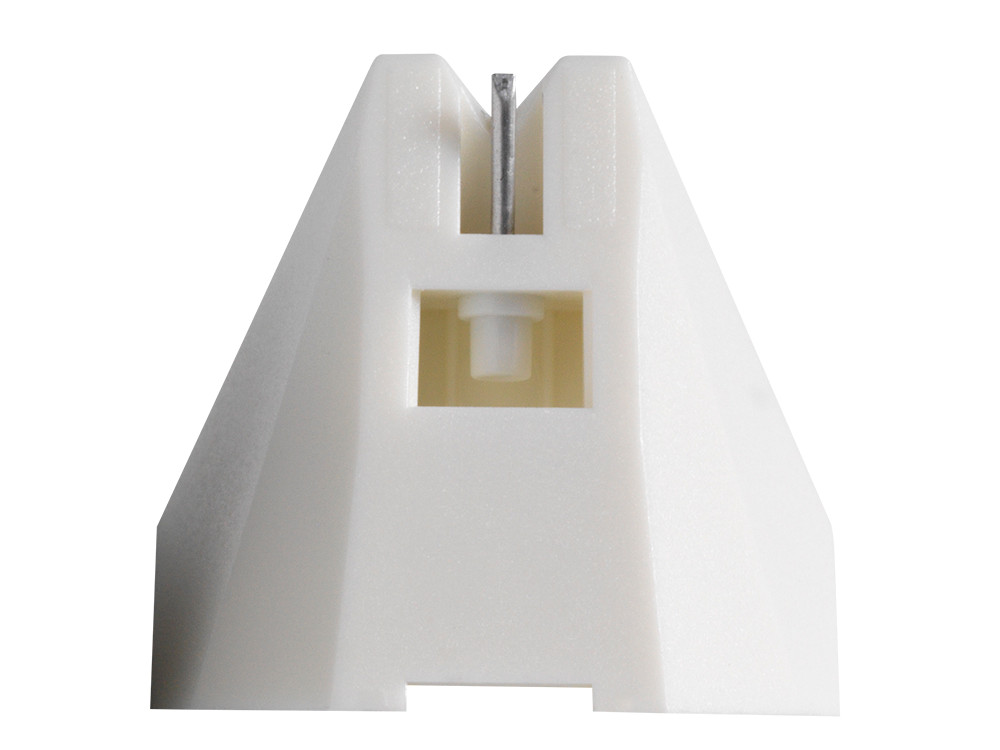

Ortofon Stylus 2M Mono

Buy together with

slide 1 to 4 of 5

Product information "Ortofon Stylus 2M Mono"

Ersatznadel für 2M-Mono Tonabnehmer

Technische Daten
Tonabnehmer-Typ:MM (Moving-Magnet)
Ausgangsspannung:4mV
Verstärkeranschluss:Phono MM/47kOhm
Kanalabweichung bei 1 kHz:-
Übersprechdämpfung bei 1kHz:-
Übersprechdämpfung bei 15kHz:-
Frequenzbereich:20 - 20.000Hz
Frequenzgang:20 - 20.000Hz +3/-1dB
Abtastfähigkeit bei 315Hz:70µm
Nadelnachgiebigkeit:18µm/mN
Abtastdiamant:Nude Sphärisch
Verrundung:R 18 µm
Auflagekraftbereich:16-20mN (1,6-2,0g)
empf. Auflagekraft:18mN (1,8g)
Abtastwinkel:20 Grad
Gleichstromwiderstand:0,7kOhm
Induktivität:350mH
empf. Abschlusswiderstand:47kOhm
empf. Abschlusskapazität:150-300pF
