Products of Wharfedale Pro

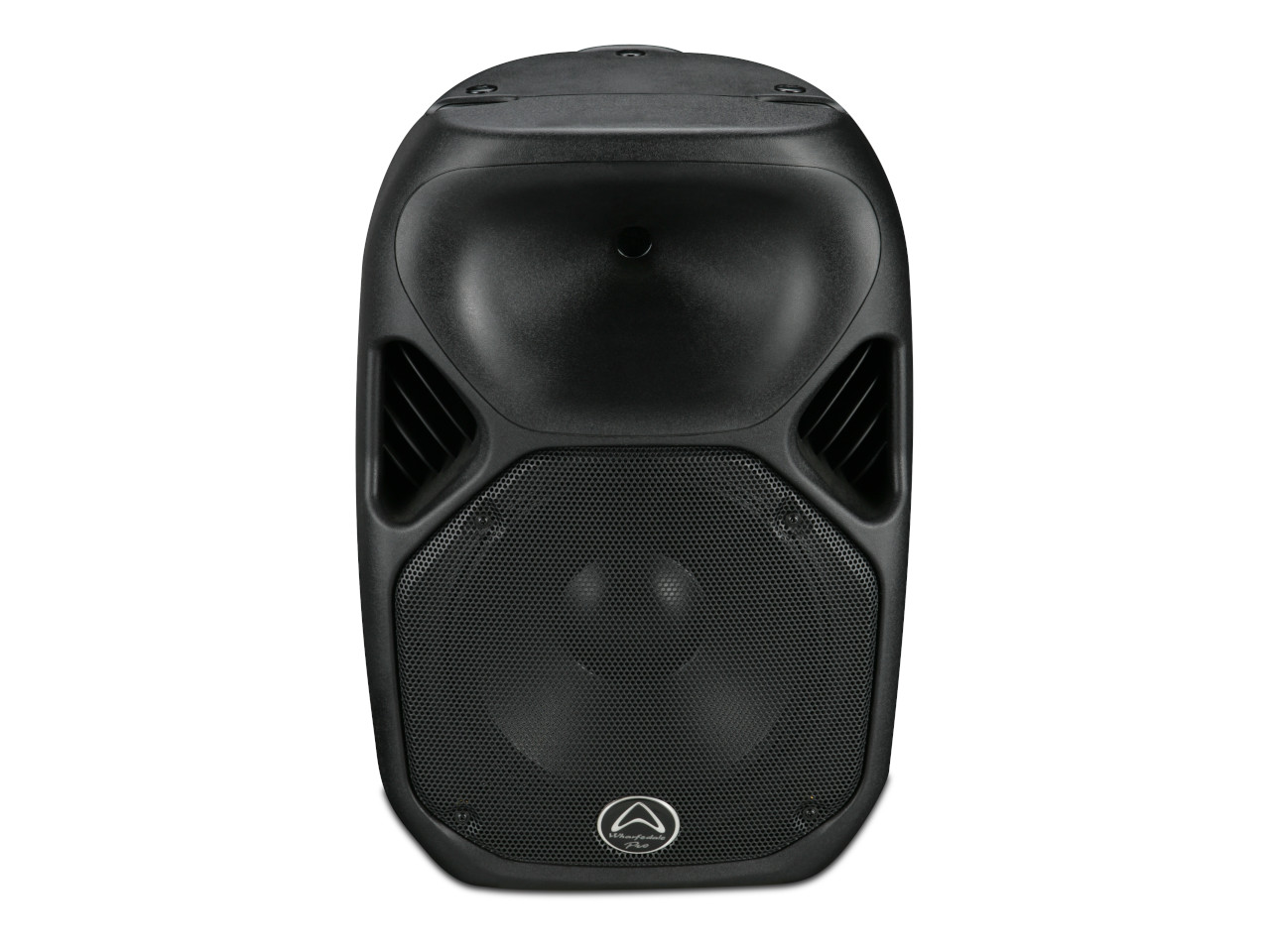

Pound for pound, the Wharfedale Titan 12 passive PA speaker is one of the most competent loudspeakers, fusing affordability and of course audio fidelity into an exceptionally lightweight polypropylene cabinet. It is 250 Watts RMS, with 128dB Max SPL making a suitable contender for small to medium sized venues.
Key Features
250W RMS / 500W Program / 1000W Peak
128dB Max SPL
55Hz 13 20kHz frequency response
Lightweight and versatile passive PA
Custom 12" Heavy duty moisture-proof
Proprietary 90 x 60 Elliptical Wave Guide Horn design
High-end Titanium HF Compression Driver
Sophisticated Linkwitz-Riley 24dB/octave crossover design
Tough, yet lightweight Polypropylene molded cabinet with rubber padded handles
Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
Trapezoid shape for arrays as well as stage monitor applications
Titan Tourbags available
Both 1/4" and NL4 connectors provided
SPECIFICATIONS
Configuration
2-Way
Frequency Response (+/- 3dB)
55-20kHz
Power (RMS / Program / Peak)
250W / 500W / 1000W
Impedance
8ohm
Max SPL
128dB
Woofer
12"
Tweeter
1.75" Titanium
Nominal Coverage
90° x 60°
Waveguide Type
Elliptical
Input
2 x Speakon, 2 x 1/4" Jack
Weight
12.kg / 26.4lbs
Dimensions (H x W x D)
556mm x 435mm x 408mm
