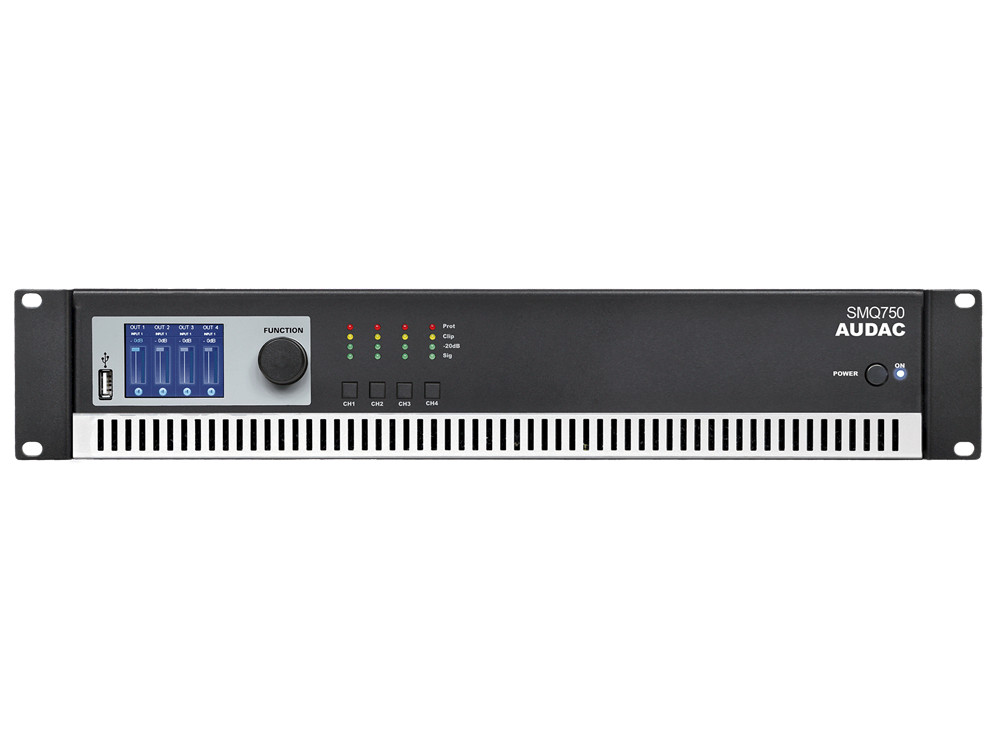

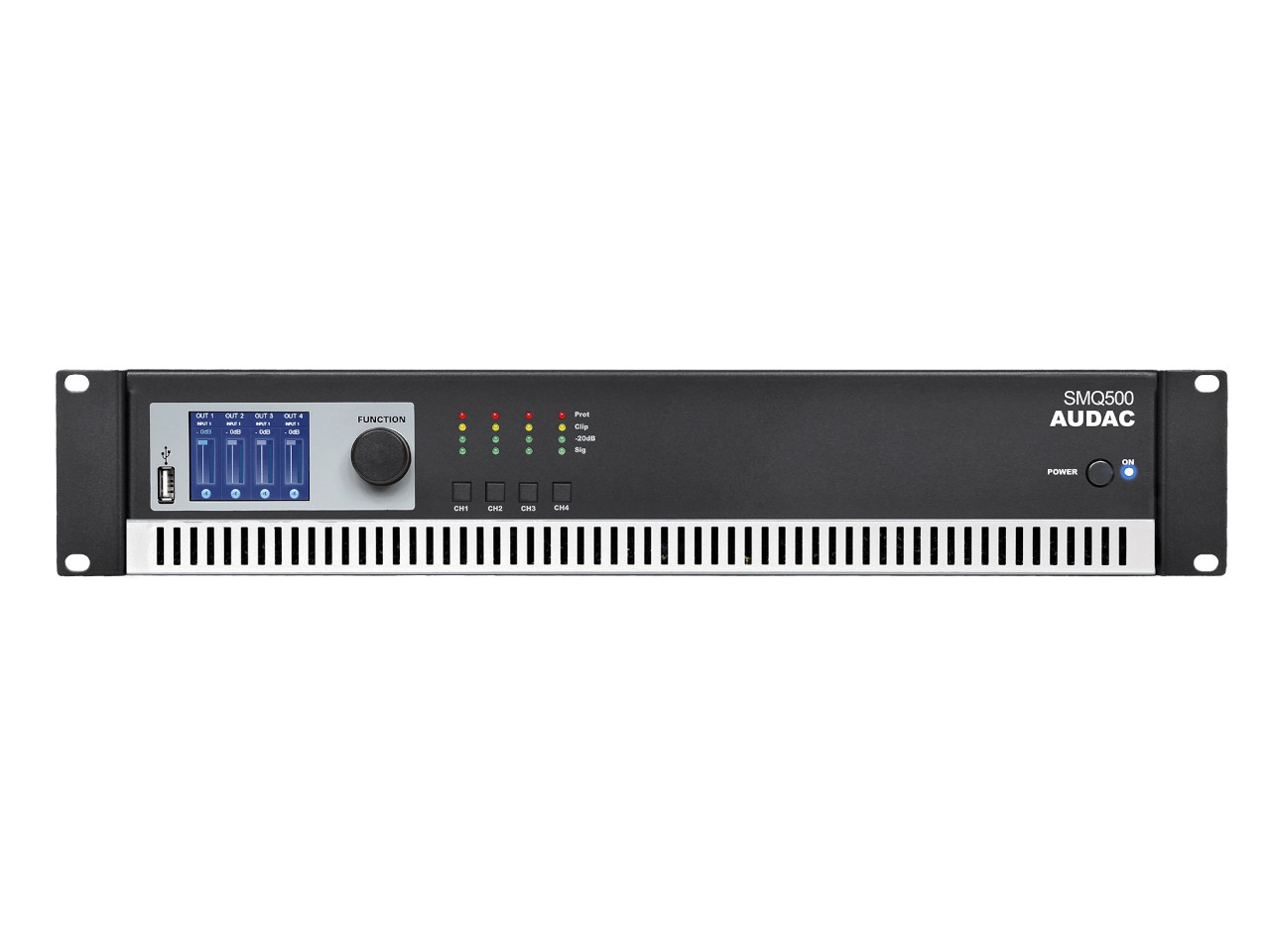

The SMQ series are quad channel power amplifiers providing a new standard for affordable audio amplification in both fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt and 750 Watt provide an enormous flexibility for numerous applications. The WaveDynamics!22 DSP processor in combination with the 2.5 1D LCD display gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel and Linkwitz-Riley filters with selectable rolloff which can be configured as Low / High & Band Pass and the 7-Band equalizer which has adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. A great input flexibility and source compatibility is provided by the input selection matrix in combination with the XLR and terminal block signal connections. The outputs are made using Speaker and Terminal block connections. System integration is made easy using the RS-232 control port. An optional Dante!22 interface is available for the WaveDynamics!22 amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network. Technische Daten: Signal / Noise> 95 dB THD+N (@ 1 kHz)< 0.05% (1/2 Rated Power) Crosstalk (@ 1 kHz)> 70 dB TechnologyClass-D Common mode rejection ratio70 dB Damping factor> 200 RMS Power 4 Ohm Stereo: 4 x 350 W 8 Ohm Stereo: 4 x 220 W 8 Ohm Bridged: 2 x 700 W Input ConnectorXLR & 3-pin Euro Terminal Block (3.81 mm) Output ConnectorSpeakon compatible & 2-pin Euro Terminal Block (5.08 mm) Dimensions482 x 88 x 420 mm (W x H x D) Weight8.100 kg Unit height2 HE

The SMQ series are quad channel power amplifiers providing a new standard for affordable audio amplification in both fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt and 750 Watt provide an enormous flexibility for numerous applications. The WaveDynamics!22 DSP processor in combination with the 2.5 1D LCD display gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel and Linkwitz-Riley filters with selectable rolloff which can be configured as Low / High & Band Pass and the 7-Band equalizer which has adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. A great input flexibility and source compatibility is provided by the input selection matrix in combination with the XLR and terminal block signal connections. The outputs are made using Speaker and Terminal block connections. System integration is made easy using the RS-232 control port. An optional Dante!22 interface is available for the WaveDynamics!22 amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network. Technische Daten: Signal / Noise> 95 dB THD+N (@ 1 kHz)< 0.05% (1/2 Rated Power) Crosstalk (@ 1 kHz)> 70 dB TechnologyClass-D Common mode rejection ratio70 dB Damping factor> 200 RMS Power 4 Ohm Stereo: 4 x 750 W 8 Ohm Stereo: 4 x 380 W 8 Ohm Bridged: 2 x 1500 W Input ConnectorXLR & 3-pin Euro Terminal Block (3.81 mm) Output ConnectorSpeakon compatible & 2-pin Euro Terminal Block (5.08 mm) Dimensions482 x 88 x 420 mm (W x H x D) Weight8.400 kg Unit height2 HE

REVAMP2600 is a professional 2-channel power amplifier with 2 x 600 watt output power @ 4 ohms. This 2 rack unit high amplifier uses Class-H technology with traditional toroidal power transformer for the analog power supply which manifest itself in a very high dynamic power (2 x 840 watts). The digital signal processor inside operates with one simple push button at the back of the unit to select an operating mode what makes this amplifier the ideal multipurpose tool for applications where you need a lot of power in two different zones like fitness centres or sub/top applications. By selecting of one the 10 presets you can easily link channels, apply high pass filters, define subwoofer and top speaker channels 26 This amplifier contains an intelligent variable speed cooling fan. The REVAMP2600 also temporally decreases the output power to a safe limit whenever a thermal overload occurs (indicated by a LED light on the front panel) so even in harsh conditions the sound remains. The very intuitive front display shows what is going on with one blink of an eye. Thanks to our own designed automatic limiting system APC (patent pending) with smart use of a compressor/limiter topology we implemented a power amplifier with a great dynamic sound with and an unseen musicality. Technische Daten: depth (incl front) (mm)340 19" (483mm wide) rack mounting Yes height- rack units (1U=44mm) (U) 2 depth (build in) (mm) 334 power consumption (max) (watts) 1840 output power RMS 4 ohms (watts)2 x 600 output power RMS 8 ohms (watts)2 x 300 music program power (watts)2 x 840 minimum impedance load (ohms)4 output channels 2 line input balanced 2 line input unbalanced 2 frequency response (in Hz) 10 - 24K Net weight product (kg) 12.10
